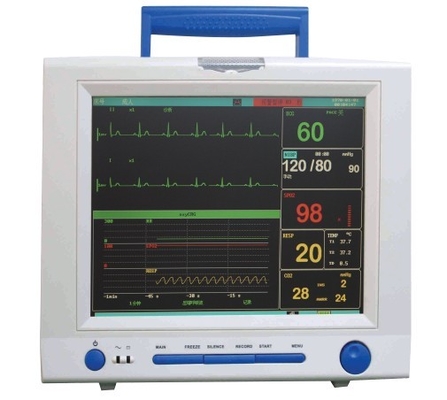

Portable Multi - parameter Patient Monitor with 7 - lead ECG Waveforms Display ETCO2

Portable Multi - parameter Patient Monitor with 7 - lead ECG Waveforms Display ETCO2

Descrition:

Portable Multiparameter Patient Monitor with ECG, RESP, NIBP, SpO2, TEMP, PR and ETCO2;

Optional with thermal recorder, IBP;

12.1 inch TFT screen;

Resolution ratio:800*600BMP;

luminance:300-350;

MEAS: 440*260*460mm/unit   520*440*470mm/2units;

Weight:9kg.

Applications:

Portable Multiparameter Patient Monitor apply to ICU, CCU, operation, adult, pediatrics and neonatal patient

Specifications:

Portable Multiparameter Patient Monitor:

●  Standard parameter: ECG, RESP, NIBP, SpO2, TEMP, PR and ETCO2.

●  12.1" large-screen color TFT display

●  7-lead ECG waveforms display ,big font observational interface

●  Reviewable ECG waveforms, Maximum 72 hours reviewing graphic trends

●  Digital SpO2 technique, precise measurement for weak perfusion and finger shaking

●  Arrhythmia and S-T segment analysis and pacemaker detection

●  Protection against interference from defibrillation and electrosurgical Unit

●  Adjustable 3 level audio and visual alarm

●  Applicable to ICU, CCU, operation, adult, pediatrics and neonatal patient

●  Built-in high-capacity battery, Battery-low indicator

●  Optional with thermal recorder, IBP

Competitive Advantage:

We provide the whole life time guarantee for inside boards of patient monitor, except man-made damage or burnt then can't be repaired.

 ECG

Lead mode:3-lead or 5-lead

Lead selection:I;II;III,avR;avF;V

Heart rate range:Adult:15-300bpm;Pediatric/Neonatal:15-300bpm

ECG waveform:2 channals

Accuracy: ±1 bpm or ±1%,which is greater

S-T segment detection;measurement range: -2.0mv~2.0mv

Alarm:Yes,audible and  visual alarm,alarm events review

NIBP

Method:Oscillometry

Modes:Manual/Auto/Comtinuous

Auto measure time:Adjustable

Measurement range:10-270mmHg

SPO2

Measurement range:0-100%

Accuracy:70-100%,±2%,0-69%,upspecified

Auto measure time:Adjustable

Pulse Rate

Range:20-254bpm

Accuracy: ±3bpm

Respiration

Method:RA-LL impedance

Range:Adult:0-120rpm;pediatric/neonatal:0-150rpm

Apnca alarm:Yes

Temperature

Range: 0 ~ 50 °C

Accuracy: ± 0.10

Channal:Dual-channel

ETCO2 concentration

Measure range: 0-99 mmHg

Accuracy:  ±2mmHg, when CO2 concentration is in 0-5.0%,

 no larger than ±6% of the readings, when CO2 concentration is  >5.0%

Standard Accessories:

Neonatal / Package Type SPO2 Probe:

Printer, ETCO2 optional:

Packing:
