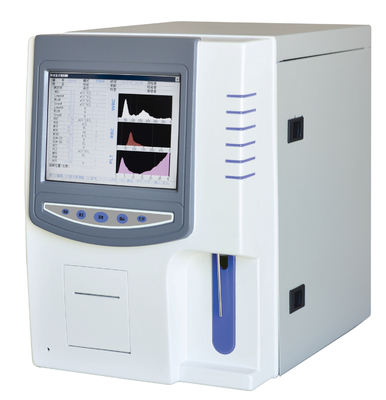

AC100 - 240V Single Channel Auto Hematology Analyzer with Color Windows Interface

AC100 - 240V Single Channel Auto Hematology Analyzer with Color Windows Interface

Descrition:

Auto Hematology Analyzer TOP-8800/ TOP-8600:

large color LCD display with 8 inch;

Dual channel (Single channel) optional;

Parameter: 3-part differentiation of WBC ,22 parameter and 3-color histograms(WBC ,RBC,PLT);

Throughput: More than 60 samples per hour (more than 30 samples per hour)

Character:

◆   Dual channel (Single channel) test,auto-add quantitative Lyses

◆   Controlled by an inlaid controller which has powerful function and accuracy

◆   High accuracy, high speed, excellent repeat function, super automatic and complete function

◆   Counts by electrical impedance method, it can proceed auto-diluents on it

◆   3-part differential on WBC, and test 22 parameters like WBC, RBC, HGB, PLT, MCV, etc

◆   Nice design, friendly structure and an 8 inch LCD big screen

◆   Save all the 10000 test parameters and 3 histograms. The menu is WINDOWS system

◆   Printer inside/ outside (optional), print very nice test report

Main Technical Specifications

    ◆   Dual Channel (Single Channel)

◆   Principle: Electrical resistance for counting, hemiglobincyanide method and SFT method for hemoglobin

◆   Parameter: 3-part differentiation of WBC, 22 parameters and 3 color histograms (WBC,RBC,PLT)

◆   Working mode: double passages counting detection + independent HGB measurement system

◆   Sample volume: Whole blood 13ul;

                                Prediluted Blood 20ul;

                                  Can test twice continuously

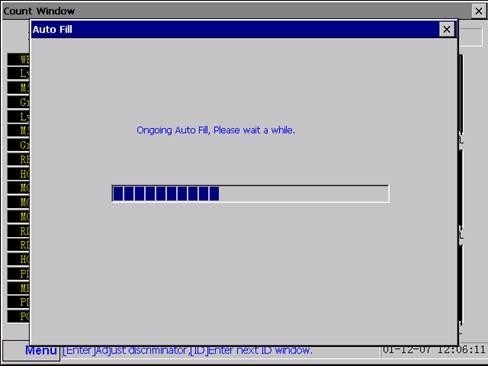

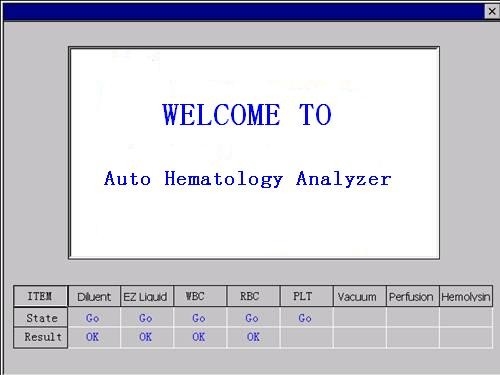

◆   Operation mode: Color Windows operating system, graphical buttons, supporting mouse operation

◆   Throughput: more than 60 samples per hour (more than 30 samples per hour), operable 24 hours a day, auto sleeping and waking-up functions

◆   Storage: Up to 10000 sample results including 3 histograms can be stored

◆   QC: L-J, X-B.

◆   Calibration mode: 3 manual calibration and auto calibration relatively independent manual calibration and auto calibration in three detecting modes

◆   Arm Reminding: multiple alarm function and specialist diagnosis prompt facility

◆   Display: large color LCD display with 8 inch, resolution: 640*480 dot

◆   Information edit: input patients’ information, search and print the information in turn.

◆   Interface: 1 parallel interface, 2 USB interfaces (1 keyboard interface, 1 mouse interface), 1 RS232 interfaces (with net)

◆   Report: Built-in rapid thermal recorder, optional external printer, Standard English report, 8 report formats

◆   Ambient Operating: Temperature: 10℃-35℃, can work in the altitude environment. Humidity: 10℅-90℅

◆   Power supply: AC100-240V 50/60 HZ
