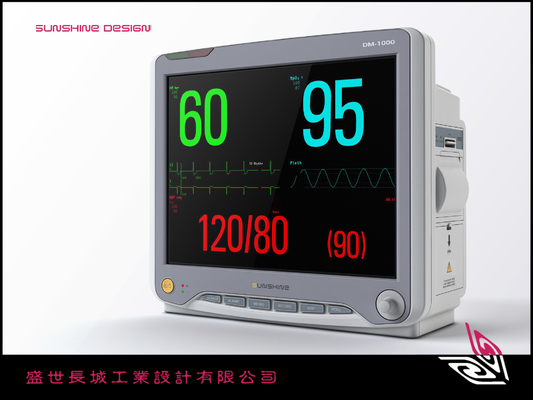

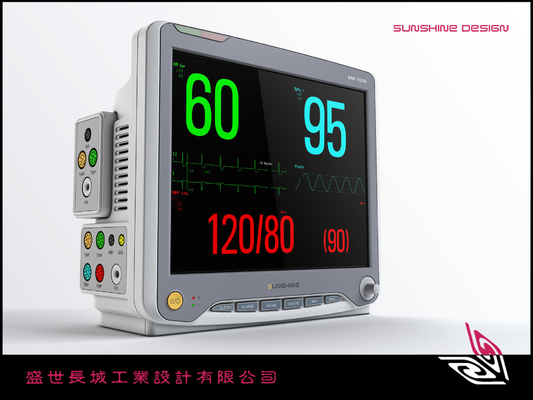

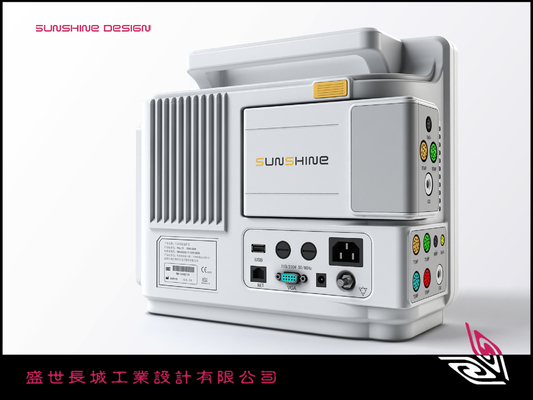

12.1 Inch Reviewable ECG Waveforms Multi - Parameter Portable Patient Monitor with ECG,RES

12.1 Inch Reviewable ECG Waveforms Multi - Parameter Portable Patient Monitor with ECG,RES

Descrition:

Portable Multiparameter Patient Monitor with ECG, RESP, NIBP, SpO2, TEMP, PR

12 inch TFT screen

luminance:300-350

resolution ratio: 800*600BMP

Weight:9kg

MEAS: 440*260*460mm/unit   520*440*470mm/2units

Applications:

Portable Multiparameter Patient Monitor apply to ICU, CCU, operation, adult, pediatrics and neonatal patient

Specifications:

Portable Multiparameter Patient Monitor:

 ●  Standard parameter: ECG, RESP, NIBP, SpO2, TEMP, PR.

 ●  12.1" large-screen color TFT display

 ●  7-lead ECG waveforms display ,big font observational interface

 ●  Reviewable ECG waveforms, Maximum 72 hours reviewing graphic trends

 ●  Digital SpO2 technique, precise measurement for weak perfusion and finger shaking

 ●  Arrhythmia and S-T segment analysis and pacemaker detection

 ●  Protection against interference from defibrillation and electrosurgical Unit

 ●  Adjustable 3 level audio and visual alarm

 ●  Applicable to ICU, CCU, operation, adult, pediatrics and neonatal patient

 ●  Built-in high-capacity battery, Battery-low indicator

 ●  Optional with thermal recorder, IBP, ETCO2

Standard 6- parameter

ECG

Lead type: 3/5 leads electric cable

Heart rate range: 15~300bpm (adult), 15-~350bpm (child & neonate)

Accuracy: ±1bpm or ±1%, whichever is bigger

NIBP

Method: Pulse wave oscillation

Operation mode: Manual/Automatic/Continuous

Over-pressure protection: 300Hg (adult), 240mmHg (child), 150mmHg (neonate)

SpO2

Range: 0~100%

Resolution: 1%

Respiration

Method: RA-LL impedance

Respiration rate: 7~120BrPM (adult), 7~150BrPM (child & neonate)

Resolution: 1BrPM

Temperature

Channels: 2 channels

Range: 0~50°C

Standard Accessories:

Neonatal / Package Type SPO2 Probe:

Printer, ETCO2 optional:

Packing:
