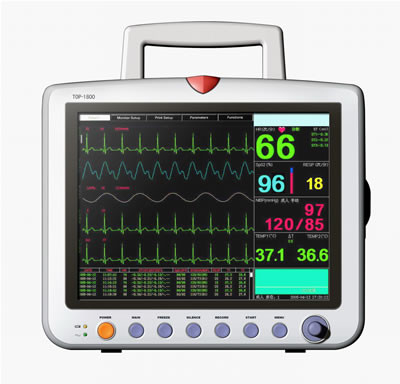

800*600BMP 12.1 Large-screen color TFT display multi - parameter portable patient monitor

800*600BMP 12.1 Large-screen color TFT display  multi - parameter portable patient monitor

Descrition:

Portable Multiparameter Patient Monitor with ECG, RESP, NIBP, SpO2, TEMP, PR

12.1 inch large TFT screen

luminance: 300-350

resolution ratio:800*600BMP

Weight:9kg

MEAS: 440*260*460mm/unit   520*440*470mm/2units

Applications:

Portable Multiparameter Patient Monitor apply to ICU, CCU, operation, adult, pediatrics and neonatal patient

Specifications:

Portable Multiparameter Patient Monitor:

Standard parameter: ECG, RESP, NIBP, SpO2, TEMP, PR.

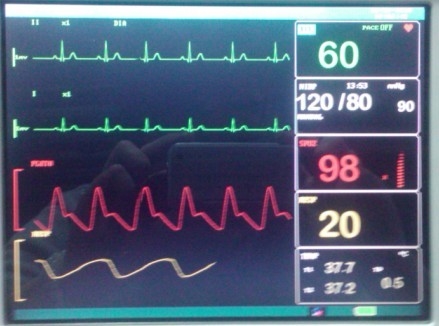

12.1" large-screen color TFT display

7-lead ECG waveforms display ,big font observational interface

Reviewable ECG waveforms, Maximum 72 hours reviewing graphic trends

Digital SpO2 technique, precise measurement for weak perfusion and finger shaking

Arrhythmia and S-T segment analysis and pacemaker detection

Protection against interference from defibrillation and electrosurgical Unit

Adjustable 3 level audio and visual alarm

Applicable to ICU, CCU, operation, adult, pediatrics and neonatal patient

Built-in high-capacity battery, Battery-low indicator

Optional with thermal recorder, IBP

ECG

1. 5-lead or 3-lead selectable

2. Input: 5-lead: RA; LA; RL; LL; V or R; L; N; F; C

3. Lead selection: I; II; III; avR; avL; avF; Vx; CAL

4. Gain selection: 12.5mm/s, 25mm/s, 50mm/s

5. Accuracy: ±1bpm or ±1%, whichever is greater

6. Protection: Withstand 4000VAC/50Hz voltage in  isolation against electrosurgical and defibrillation

7. Calibration signal: 1mV±5%

8. Operation modes: Diagnostic, Monitor, Surgery

9. Alarm range: Adult: 15-300bpm

10. Pediatric/Neonatal: 15-350bpm

11. Alarm range: -2.0mV~2.0mV

12. S-T detection: YES, Arrhythmia analysis: YES

13. Alarm: YES, audible and visual alarm, alarm events recallable

NIBP

1. Method: Oscillometry

2. Operation modes: Manual/Automatic/STAT

3. Measurement unit: mmHg/KPa selectable

4. Measurement types: Systolic, Diastolic, Mean

5. Measurement range: Adult: 10-270mmHg

6. Over-pressure protection: YES

7. Resolution: 1mmHg

8. Accuracy: Mean error and standard deviation   per ANSI/AAMI SP-10

9. Alarm: Systolic,Diastolic,Mean

SpO2

1. Measurement range: 0-100%

2. Accuracy: ±2digit (70~100%);

3. 0~69% unspecified

4. Alarm range: 0-100%

Respiration

1. Method: RA-LL impedance

2. Alarm range: Adult: 0-120rpm

3. Pediatric/Neonatal: 0-150rpm

4. Apnea alarm: YES

Temperature

1. Resolution: 0.1°C

2. Channel: Dual-channel

3. Alarm range: 0-50°C

Option:

EtCO2

1. Measurement Mode: Side-stream or mainstream

2. Measurement range: EtCO2: 0-99mmHg

3. Accuracy: CO2 concentration

4. Apnea alarm: YES

IBP

1. Channel: 2 channels

2. Pressure transducer: Sensitivity: 5( mV/V/mmHg)

3. Transducer sites: ART, PA, CVP, RAP, LAP, ICP

4. Alarm range: -10~300mmHg

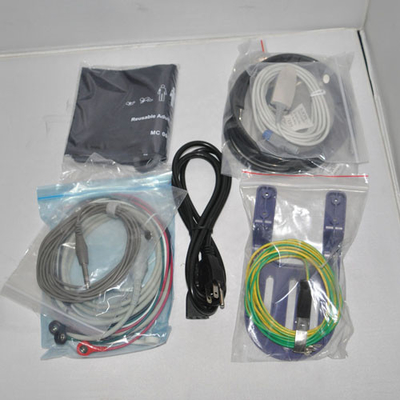

Standard Accessories:

Neonatal / Package Type SPO2 Probe:

Printer, ETCO2 optional:

Packing:
